Processing JSON and XML

Please read the Material Usage Rules on this site.

🔗 Original page — Source of this material

Description​

This action is used for processing and working with JSON and XML.

Attention

Only one JSON and one XML object can be processed at a time in a project. If you need to handle multiple sets of data of the same format, you'll need to do it one by one.

JSON​

JSON (JavaScript Object Notation) is a simple data exchange format that's easy to read and write for both humans and computers.

Example:

{
   "firstName": "Иван",
   "lastName": "Иванов",
   "address": {
       "streetAddress": "Московское ш., 101",
       "city": "Ленинград",
       "postalCode": 101101
   },
   "phoneNumbers": [
       "812 123-1234",
       "916 123-4567"
   ]
}

XML​

XML (eXtensible Markup Language) is a markup language similar to HTML. It's meant for transferring data, not displaying it. XML tags are not predefined. You have to set whatever tags you need yourself.

<CATALOG>
	<CD>
		<TITLE>Имперская Пародия</TITLE>
		<ARTIST>Боб Дилан</ARTIST>
		<COUNTRY>США</COUNTRY>
		<COMPANY>Колумбия</COMPANY>
		<PRICE>10.90</PRICE>
		<YEAR>1985</YEAR>
	</CD>
	<CD>
		<TITLE>Спрячь свое сердце</TITLE>
		<ARTIST>Бонни Тайлер</ARTIST>
		<COUNTRY>Соединенное Королевство</COUNTRY>
		<COMPANY>Записи си-би-эс</COMPANY>
		<PRICE>9.90</PRICE>
		<YEAR>1988</YEAR>
	</CD>
	<CD>
		<TITLE>Лучшие Хиты</TITLE>
		<ARTIST>Долли Партон</ARTIST>
		<COUNTRY>США</COUNTRY>
		<COMPANY>Ар-Си-Эй</COMPANY>
		<PRICE>9.90</PRICE>
		<YEAR>1982</YEAR>
	</CD>
</CATALOG>
Note

Sometimes services return text that's not formatted nicely (like the examples above), but all in one line, making it much harder to read. In these situations, you can use so-called beautifiers. The Tester X/JSON Path already has this built-in (the Beautify button). For the action itself, it doesn't matter whether the text is in one line or nicely formatted—what matters is that it is put together correctly.

How do I add this action to a project?​

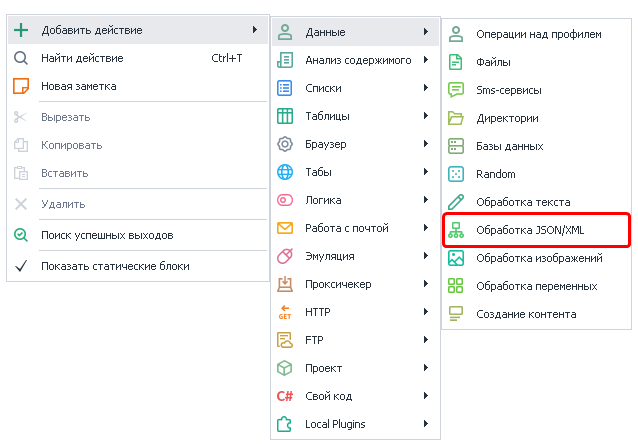

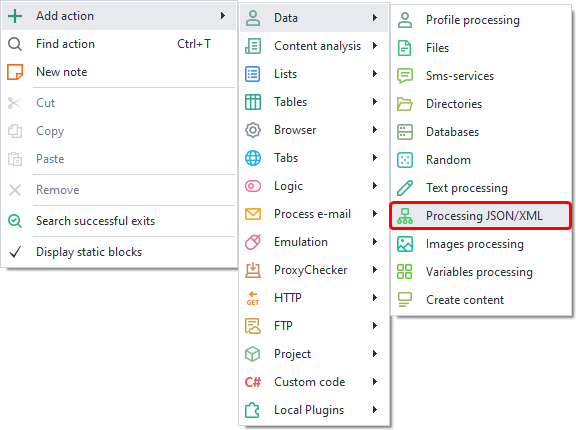

Right-click and select Add Action → Data → Process JSON/XML

image-20200817-161446

Or you can use the ❗→ smart search.

Where is JSON/XML used?​

Most often, these formats are used in APIs of various services.

For example, services for recognizing ❗→ captchas or ❗→ SMS services (if you're working with them directly using ❗→ GET-, ❗→ POST- and ❗→ other requests, bypassing the ❗→ SMS Processing Services and ❗→ Captcha Recognition actions) usually work with at least one of these formats (sometimes both at once).

How do I use the action?​

First, you need to choose the data type you want to work with.

image-20200817-163942

Parsing​

The data must be processed, and that's what the *Parsing action is for.

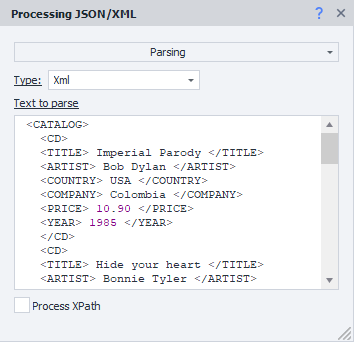

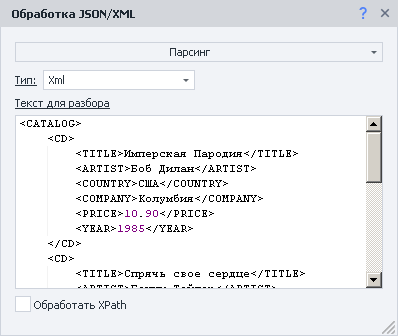

Here, the XML from the Description is processed
Here, the XML from the Description is processed

Variables Window​

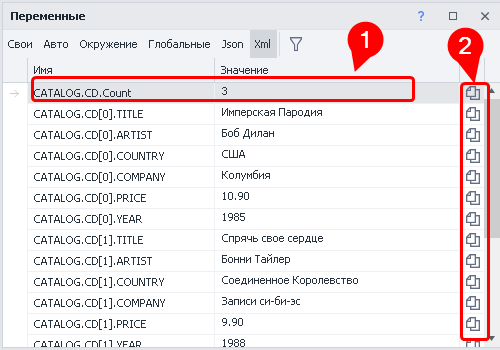

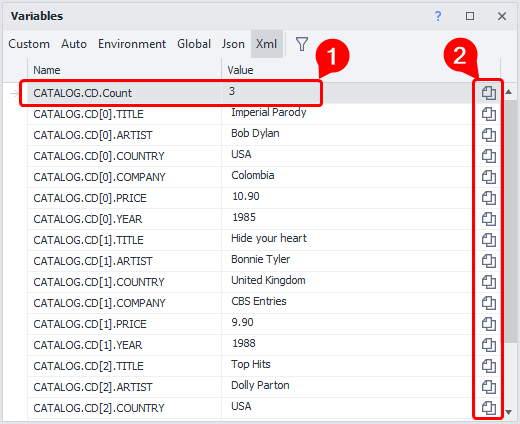

The result of the action is stored in a project variable called Json or Xml, depending on what you parsed. You can view the contents in the ❗→ Variables Window

image-20200817-165508

Since in the example we parsed XML, we selected the relevant tab in the *Variables Window.

The *Count (1) variable stores the number of elements—very convenient to use as a limit when looping through the data. For example, if the example also had <DVD> tags at the same level as <CD>, then there would be a variable CATALOG.DVD.Count with the number of <DVD> tags.

image-20200817-170021

By using the special buttons (2) you can quickly copy the ❗→ variable macro to the clipboard.

Variable Macros​

Here's an example of one of the variable macros: { -Xml.CATALOG.CD[1].ARTIST- }.

You can use other variables inside this variable, for instance:

{-Xml.CATALOG.{-Variable.item_type-}[{-Variable.counter-}].{-Variable.property-}-}

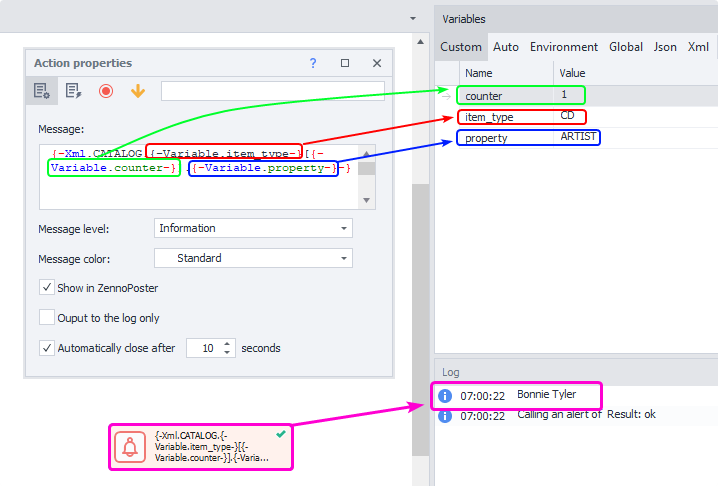

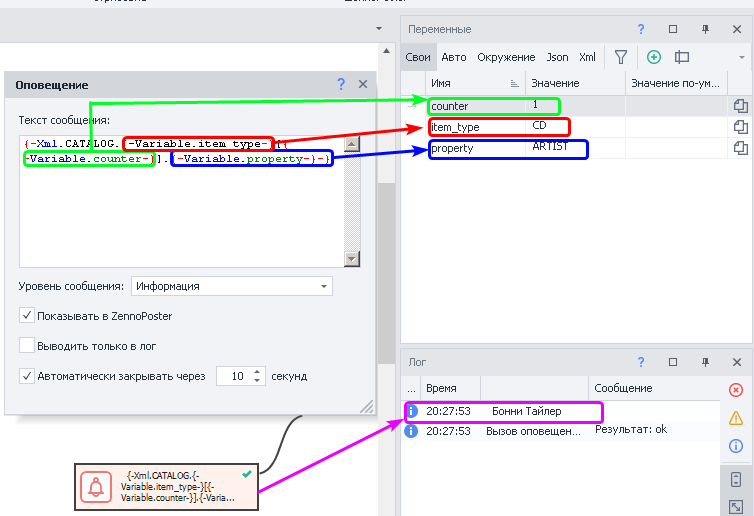

Substituting data from other variables and the result (based on the data from the Description section. Indexing starts at zero.)
Substituting data from other variables and the result (based on the data from the Description section. Indexing starts at zero.)
Note

To quickly insert a variable, you can press CTRL+SPACE in any text field. A dropdown menu will appear; double-click on Xml or Json in this menu (depending on what you're working with). Then put a dot, and another menu with the parsed variables will show up.

image-20200817-171537

image-20200817-171624

Process JsonPath/XPath​

This option is used when, out of all the data processed by the *Parsing action, you need to extract a specific subset. In this case, you write an ❗→ XPath (for XML) or JsonPath (for JSON) expression. The ❗→ Tester X/JSON Path can help you write these expressions. You can also use variable macros in the expression field.

image-20200817-174606

XML Features​

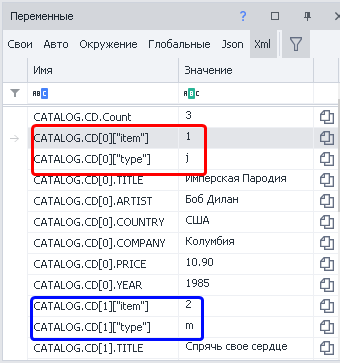

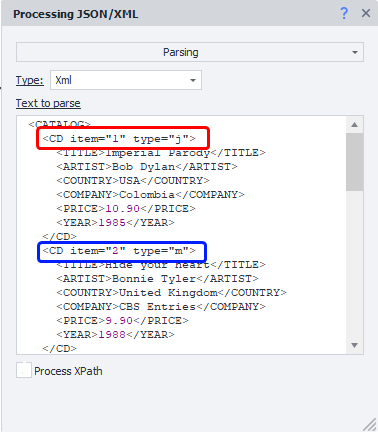

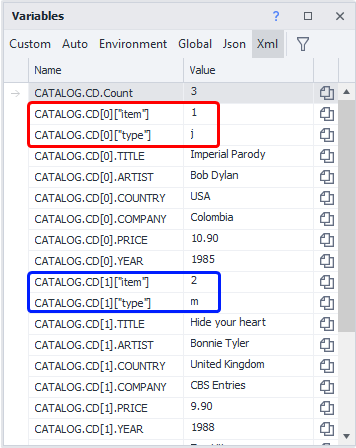

XML nodes can have attributes. To access them in macros, you use square brackets with the string value. (For example: { -Xml.CATALOG.CD[0]["item"]- }).

image-20200817-191702

image-20200817-191835

Processing Speed​

Parsing a large JSON or XML while debugging in ProjectMaker might take some time. But when running in ZennoPoster, parsing is much faster.

Add to List​

This action is used when you want to extract a specific property from each element in all the data. You can use ❗→ variables.

Property refers to the field that will be processed as an array. You can use nesting by using a dot (for example: store.employees). If the field isn’t an array, only one item will be added to the list.

Subproperty—since arrays can contain complex objects, you can specify which value to take from them for the list.

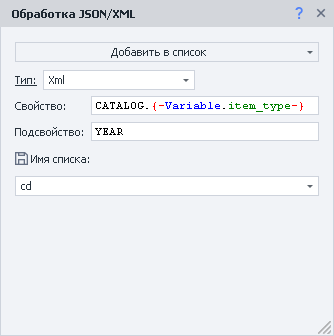

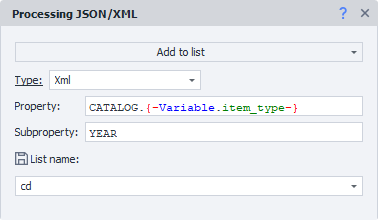

If we use the data from the *Description section and imagine we only need the years for each CD, the action could be set up like this:

The variable { -Variable.item_type- } contains CD
The variable { -Variable.item_type- } contains CD

Add to Table​

This action is similar to the previous one, but here you can get not just one property, but several. You can use ❗→ variables.

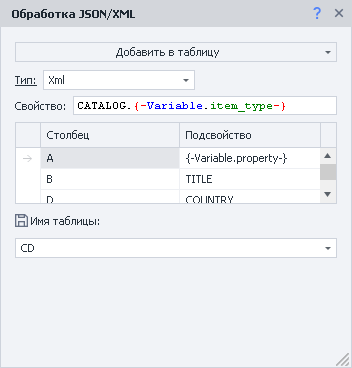

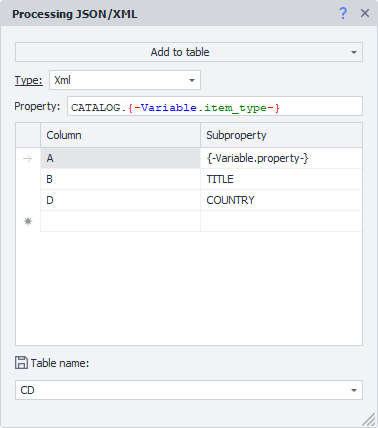

The variable { -Variable.item_type- } contains CD and { -Variable.property- } contains ARTIST
The variable { -Variable.item_type- } contains CD and { -Variable.property- } contains ARTIST

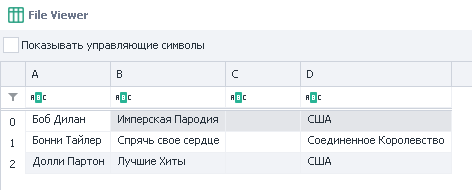

Columns are named like in Excel—capital (!) Latin letters, in alphabetical order. If a column is skipped, it'll be empty. In the screenshot, you can see that column C isn’t specified, and this is how it appears in the final table:

image-20200817-183734

Working with code​

In C#, JSON and XML objects are stored in the project object. They have the dynamic type, so the code editor can't always show full intellisense (dropdown suggestions).

Example of working with XML:

project.Xml.FromString(project.Variables["XmlText"].Value);
return project.Xml.PurchaseOrder.Address[0]["Type"];

Example 2:

var list = new List<string>();
for(int i = 0; i &lt; project.Xml.PurchaseOrder.Address.Count; i++)
{
 list.Add(project.Xml.PurchaseOrder.Address[i].Name.Value);
}
return string.Join(", ", list);

Example 3:

var list = new List<string>();
foreach(dynamic i in project.Xml.PurchaseOrder.Address)
{
 list.Add(i.Name.Value);
}
return string.Join(", ", list);

It works the same way with Json. However, keep in mind you don't use "Value" when accessing properties.

Example:

return project.Json.employees[1].firstName;

Usage Example​

JSON​

Here's a website: http://ip-api.com, which returns detailed information about an IP address using a basic API. This is useful for:

  • making sure your project is using a proxy and not your main IP,
  • selecting a country/city during registration, based on the proxy's info.

It can return data in different formats (more details here - https://ip-api.com/docs), but we're interested in JSON for now.

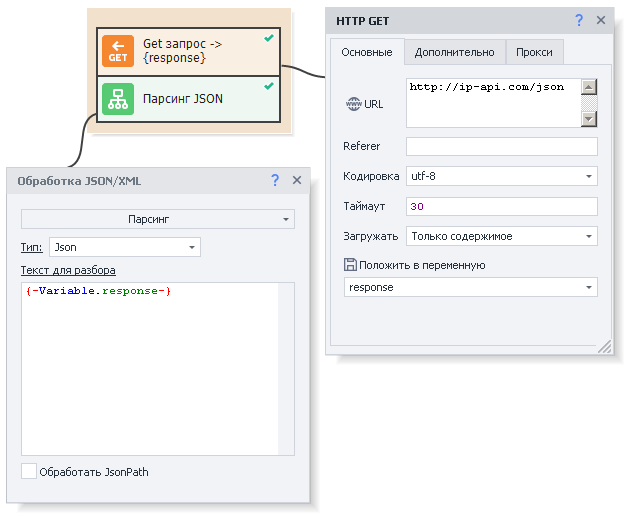

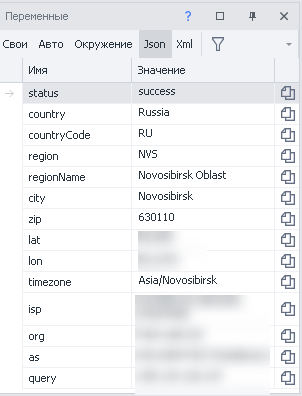

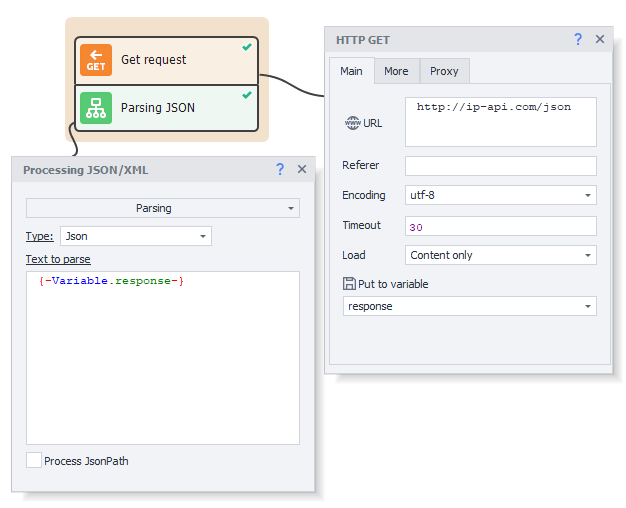

To get information, send a ❗→ GET request to http://ip-api.com/json, then process the result with the *Parse action and work with the received data.

image-20200817-193945

image-20200817-194039

XML + XPath Processing​

We'll use the data from the *Description section.

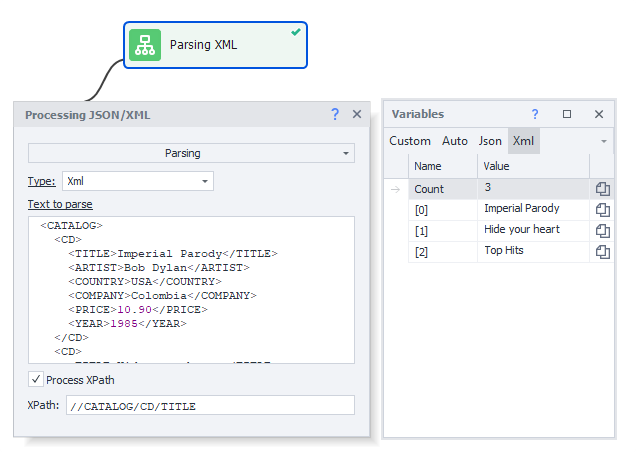

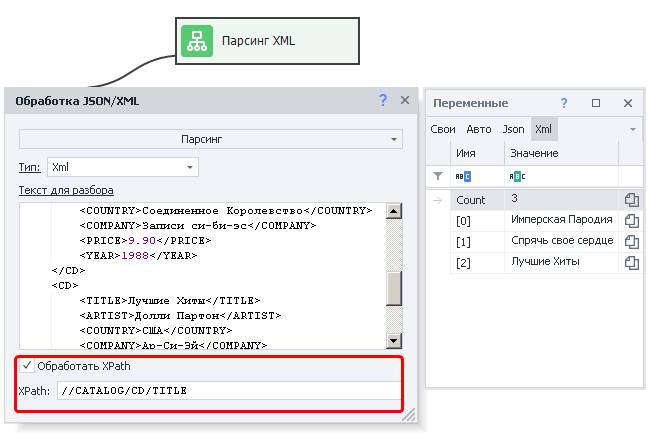

Let's say we only need the album titles. For this task, we'll create the XPath expression //CATALOG/CD/TITLE.

Action settings and result (on the right)
Action settings and result (on the right)
