Launching Programs

Please read the Material Usage Rules on this site.

🔗 Original Page — Source of this material

Description​

This action is for launching third-party programs. You can launch regular desktop applications (Notepad, WinRar, Paint) as well as console utilities (ffmpeg, ImageMagick). You also have the option to pass launch parameters.

How to Add this Action to a Project?​

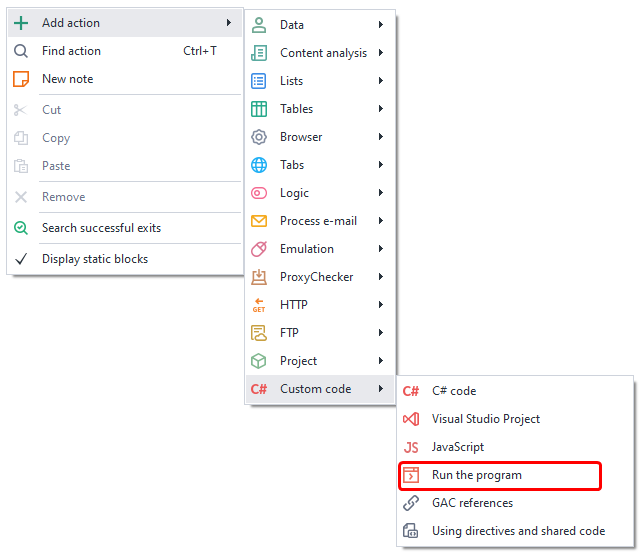

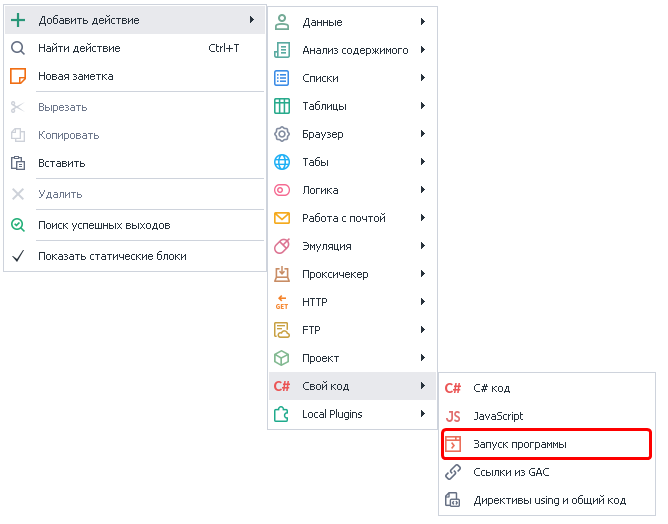

Using the context menu Add Action → Custom Code → Launch Program

image-20200813-142250

Or use ❗→ Smart Search.

Where Can This Be Used?​

  • Most commonly, it’s used to launch console utilities. For example:
    • ❗→ ImageMagick — a set of programs (console utilities) for reading and editing files in many graphic formats (images).
    • ❗→ FFmpeg — a set of free open-source libraries for recording, converting, and streaming digital audio and video in various formats.
    • running scripts in ❗→ Python and other programming languages.
  • Launching any other applications

How to Work with the Action?​

image-20210607-091211

Executable File​

The full path to the file you want to run (clicking the “File Selection” button (highlighted by a red square) will open the standard file dialog on your computer).

  • If the file is not found at the specified path, the action will end with an error
  • You can use ❗→ variable macros
  • If the folder for the executable is in the PATH environment variable, you can just provide the filename without the full path (notepad.exe or calc.exe)

Launch Parameters​

These are additional commands that are passed to the program being launched. Each program has its own launch parameters (you can use ❗→ variable macros).

  • For example, launching a new Chrome browser window with the URL https://zennolab.com will look like this:

image-20200813-150418

  • When launching console utilities, arguments are passed in this field.

Timeout​

It’s useful if you know roughly how long the program will run. If the called program doesn’t finish within the specified number of seconds, the action will end with an error.

Note

You can specify fractional values.

image-20200813-152224

You can disable this behavior; see details below

Do Not Show Process Window​

When this option is enabled, the launched program will not be displayed.

Do Not Wait for Process to Finish​

If you enable this setting, *Timeout will be ignored and the action will not wait for the program to finish.

Save EXIT CODE​

The return code with which the launched program finished.

Usually, if the program ends normally, it returns 0 (zero). If something else is returned, the program may have ended with an error. To find out what a code means, you can search for program_name exit code return_code, e.g. ffmpeg exit code 137

Save STD OUT​

This is the standard output stream. In other words, everything the program writes to the console window (unless it’s an error message) is STD OUT.

Example:

when you install ImageMagick, it adds its folder to the PATH environment variable, so there’s no need to write the full path to the executable; you can just write xml magick.exe <arguments_here> . To demonstrate STD OUT, let’s run the program with the -usage argument (the program will respond with basic info about itself) and redirect STD OUT to a variable.

image-20200813-174153

Save STD ERR​

This will store data if the program reports any errors.

Example:

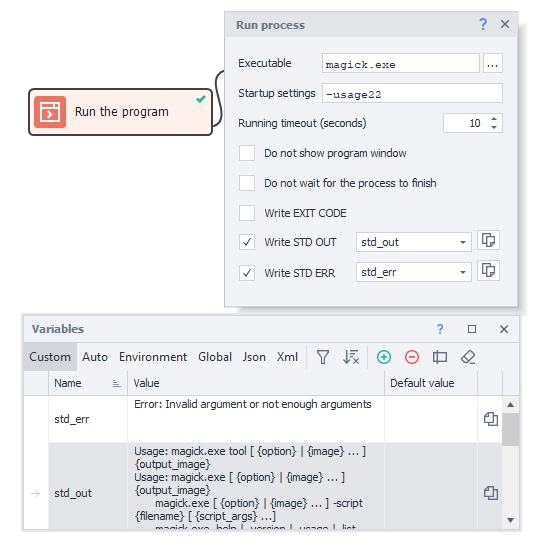

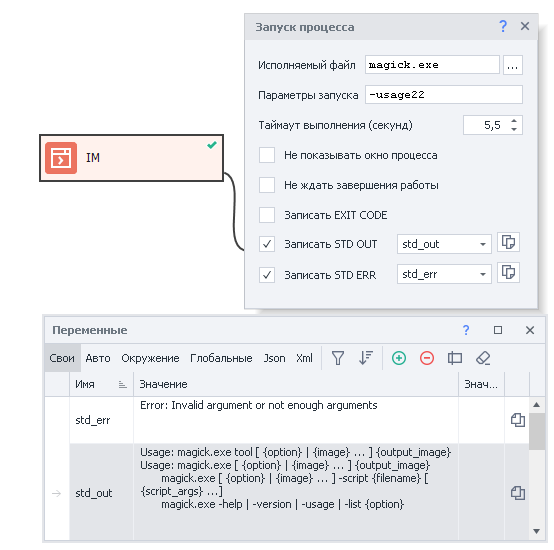

Let’s repeat the previous command, but make a typo in the command and write -usage22

image-20200813-174729

As you can see in the screenshot, the error message was captured in STD ERR, indicating that an invalid argument was passed or not enough arguments were provided. At the same time, STD OUT also captured some data — the program gives us a hint on how to use it correctly.

Note

You can repeat the commands described above. To do this, you’ll need to install ImageMagick, then open a console window (Win+R → type cmd.exe → press Enter) and enter the commands magick-usage and magick-usage22

Example Usage​

Let’s look at a few examples using ImageMagick.

Goal: create an image 600 by 600 pixels, with a light blue background, with the text “ZennoPoster” (in blue), font — Arial, font size — 72. Save the result as a file at C:\Users\user\Desktop\result.gif next to the template. The command will look like this (convert is one of the utilities included with ImageMagick. The path to the executable and desktop may be different on your computer):

C:\Program Files\ImageMagick-7.0.10-Q16\convert.exe -size 600x600 -background lightblue -gravity Center -fill blue -font Arial -pointsize 72 label:ZennoPoster C:\Users\user\Desktop\result.gif
Note

For more details about specific arguments, use your favorite search engine. This goes beyond the scope of this help file.

Warning

To run the command correctly in cmd.exe, you need to enclose the path to the executable in quotes — "C:\Program Files\ImageMagick-7.0.10-Q16\convert.exe"

Example #1. ImageMagick All Parameters Hardcoded​

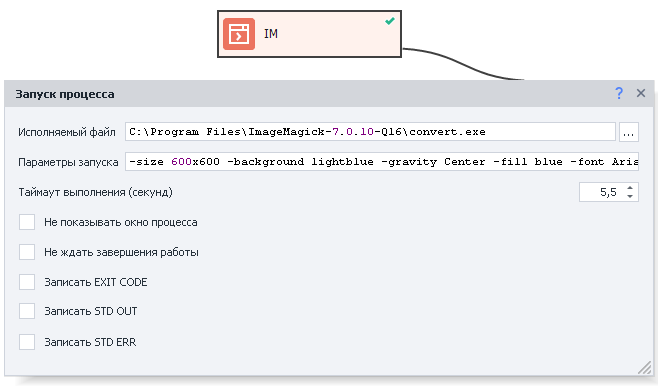

Unfortunately, not all launch parameters fit in the screenshot

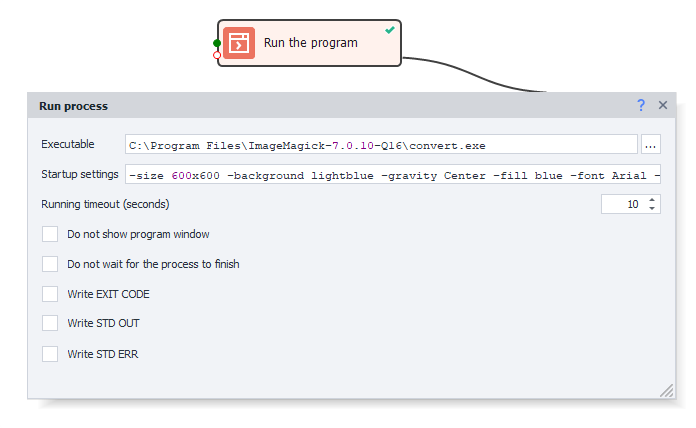

Unfortunately, not all launch parameters fit in the screenshot

After running this action, a file named result.gif will appear on the desktop.

result

Example #2. ImageMagick Parameters Passed as Variables​

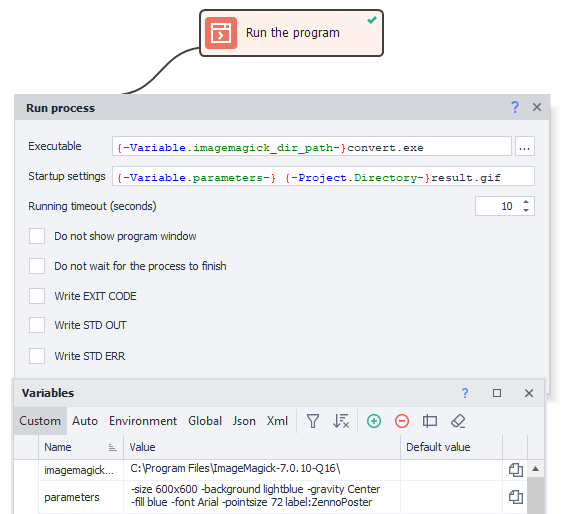

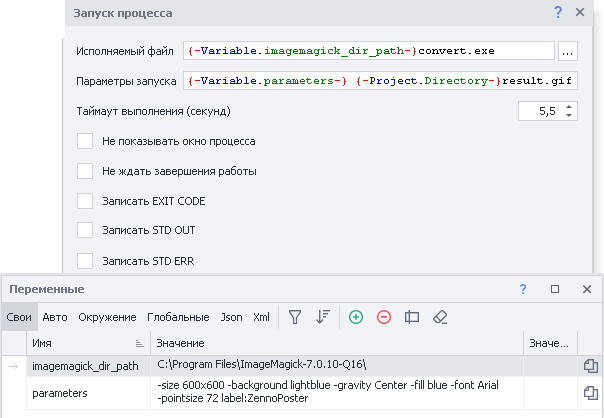

image-20200813-185801

  • In this example, the path to the folder with the executable was placed in a ❗→ variable (for example, the template might run on different computers, and each one may have its own path).
  • All parameters were also placed in a variable (it’s not necessary to store everything in one variable. You can create a separate variable for each argument and list them all in the Launch Parameters field)
  • The final file result.gif is saved in the same directory as the project file. ({ -Project.Directory- } is a system variable that stores the full path to the current project directory)
Warning

The project must be saved on your computer when using the { -Project.Directory- } variable. Otherwise, this variable will be empty.

Example #3. Running a Python Script​

Warning

For this example to work, Python must be installed on your system.

Sometimes, when searching online for solutions, you may find scripts written in various programming languages that do exactly what you need. Of course, you could completely rewrite the script in C# and launch it with the ❗→ Custom C# code action. Or, you can launch the script using the Launch Program action and use its result. We’ll look at the latter, using Python as an example.

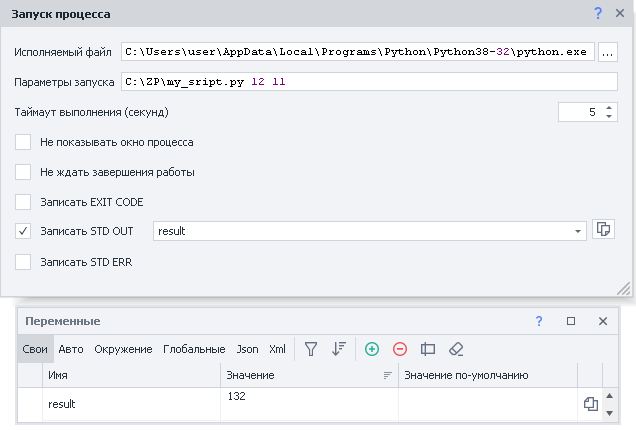

There's a script located at C:\ZP\my_sript.py, which takes two numbers as input, multiplies them, and prints the result to the console (your script might generate an image, text, or could be a neural network that solves captchas; in general, anything).

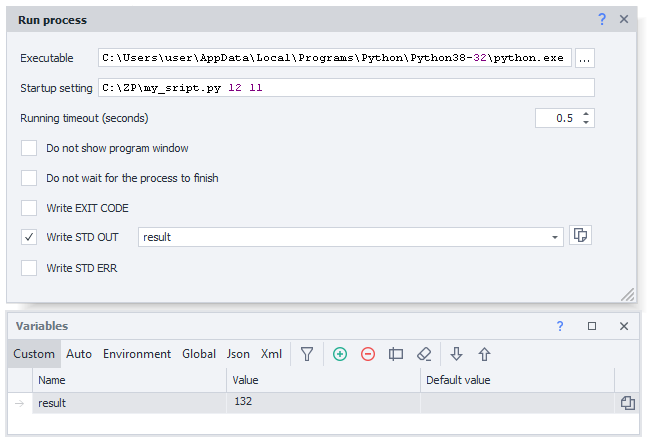

image-20200814-085851

  • For the executable, specify C:\Users\user\AppData\Local\Programs\Python\Python38-32\python.exe (on your computer, the path might differ).
  • In the launch parameters field, enter the path to the script first (C:\ZP\my_sript.py), followed by two arguments (12 11).
  • After launching this action, the result variable will contain the action result — 132.

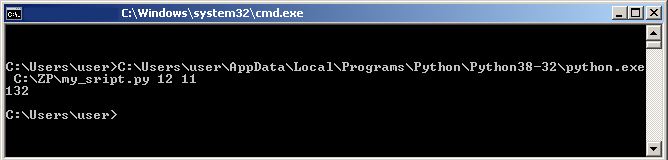

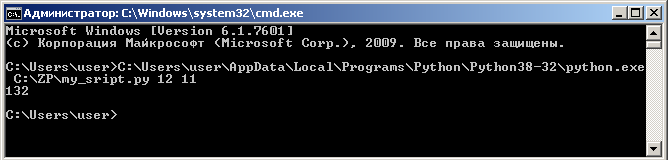

Here’s what launching that same script looks like in cmd.exe

image-20200814-090306
