Actions Window

🔗 Original page — Source of this material


Description

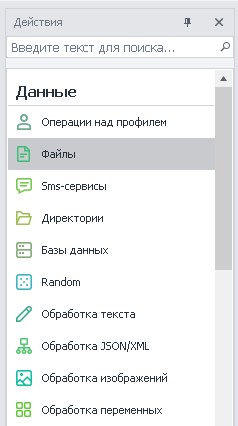

A navigation window that lets you quickly find and add actions to your project by name or function.

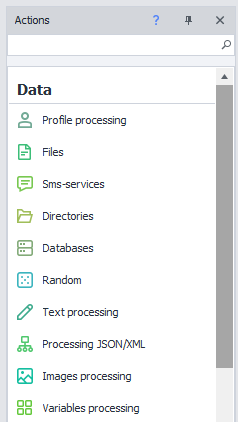

image-20200806-193456

How do I open the window in ProjectMaker?

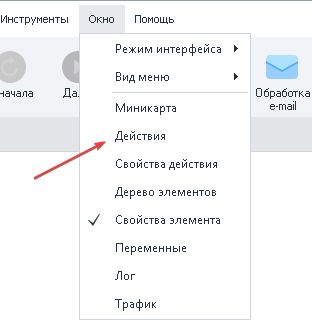

Method 1:

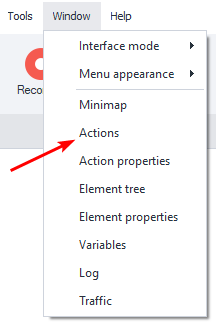

image-20200806-193953

Method 2:

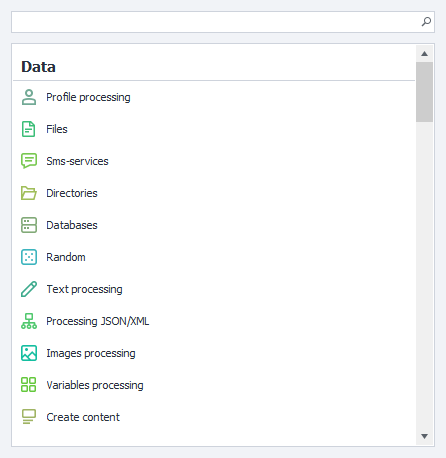

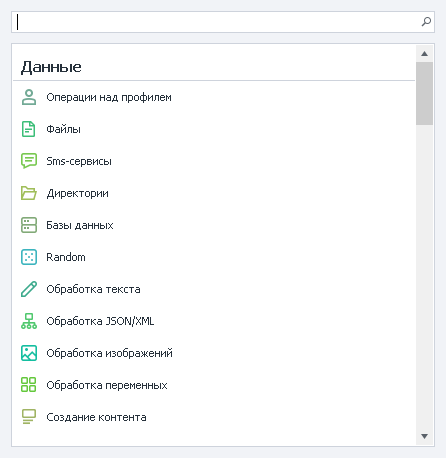

Open the popup window by pressing the hotkey Ctrl + T

image-20200807-105407

What is this used for?

  • Search for actions by function or name
  • Add an action to the project with the selected function
  • Quickly move actions by double-clicking

How do you work with the Actions Window?

Information

When the window is active, pressing Ctrl + T will focus the cursor in the search bar

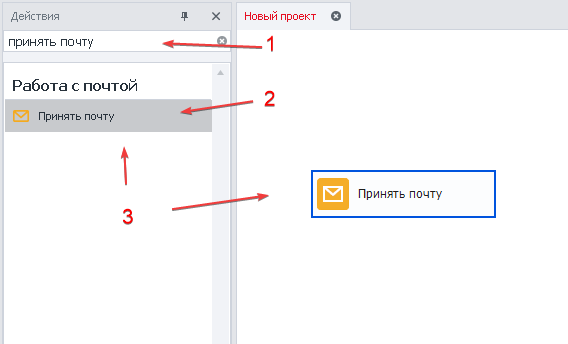

Searching for an action by name and adding it to your project.

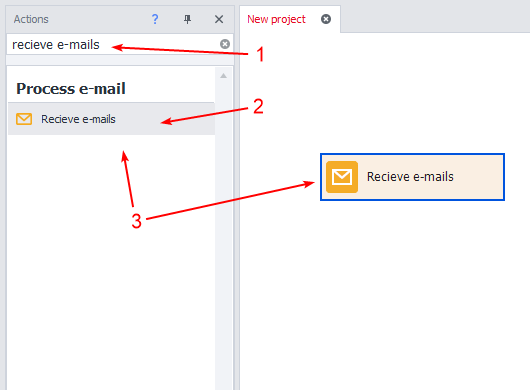

image-20200806-201110

  1. Enter the name in the search bar.
  2. Choose the desired action from the suggestions.
  3. Double-click the left mouse button or drag the block into the project with the cursor.
Information

The smart search understands alternative names. For example: regex

Searching for an action by function name and adding it to your project.

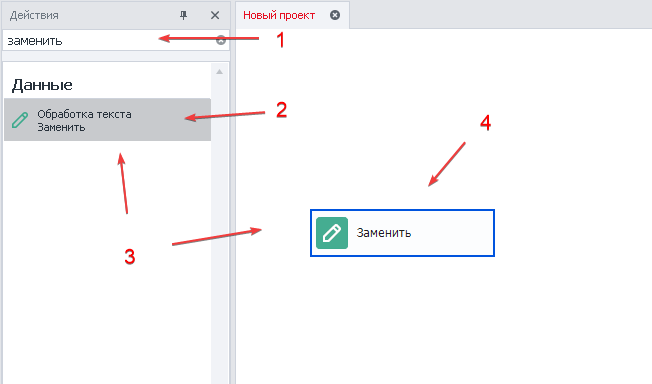

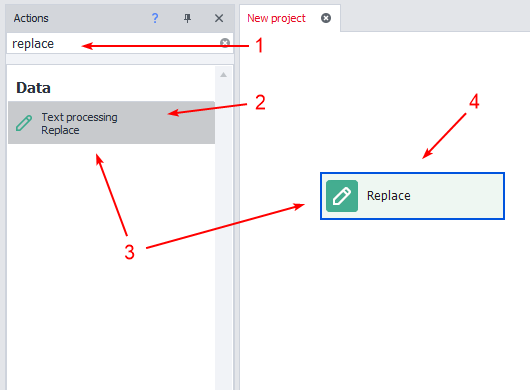

image-20200806-200848

  1. Enter the name in the search bar.
  2. Choose the desired action with the required function from the suggestions.
  3. Double-click the left mouse button or drag the block into the project with the cursor.
  4. A block with the specific function will appear in the project.

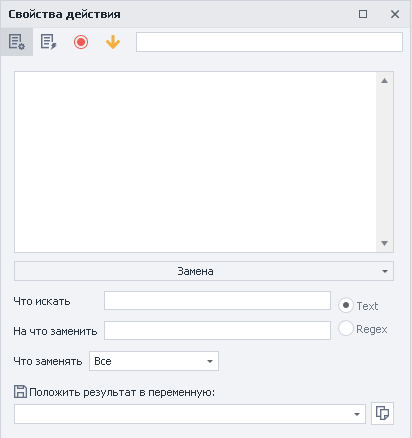

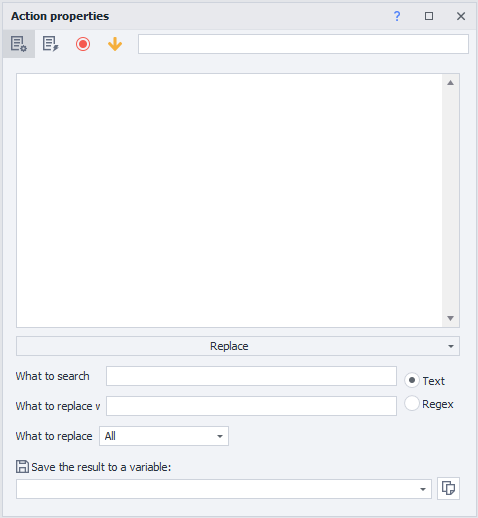

image-20200806-201249

Information

The action is created immediately with the selected function

Alternative way to add actions.

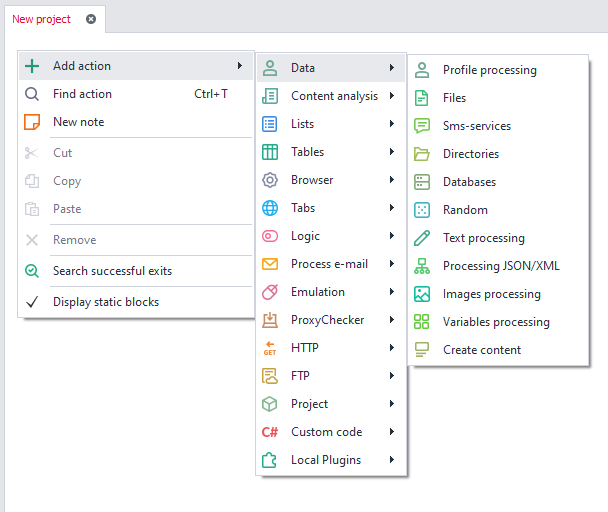

Right-click anywhere in the project window to open the ❗→ context menu.

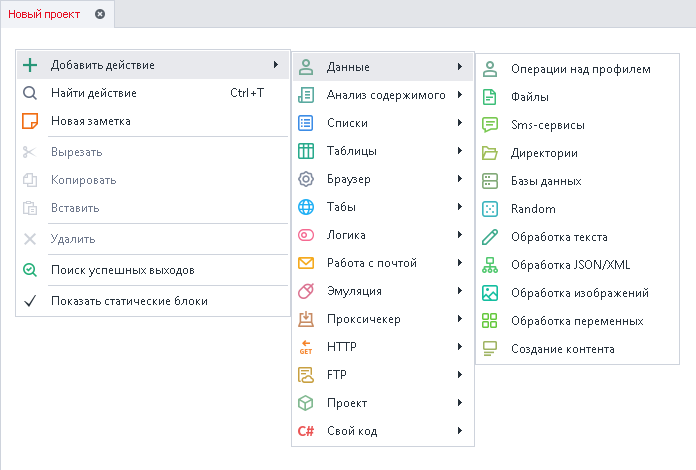

image-20200807-110156

Example of use

The window helps you quickly find and add actions to your project. If you forget where a needed function is, just enter it in the search. This way you can save time while building your project.

The actions window contains the entire vast functionality of the program—over a hundred functions. Enter keywords to find the function you need:

📹 There was a video here

You can find a reference for available actions here: ❗→ Actions

  1. ❗→ Actions in ProjectMaker ("Actions", "Blocks")
  2. ❗→ Advantages of the ProjectMaker 7 interface
